3V1180 Wedge belt
[In stock and available for immediate pickup or delivery across Canada/USA]
International orders, please contact us.
Brand: THREE FIVE
Model: 3V1180
Made in Thailand
Information
SWR Wedge belts are made with premium materials to deliver up to twice the power transmission capability of similarly sized classical V-belts. These belts can operate at speeds up to 6500 RPM.
Manufactured with a durable layer of continuous polyester cable cord, these belts withstand higher dynamic loads and resist flexing from shocks and fatigue. Contact us directly for any unlisted sizes.
- Heavy duty rubber base with fabric core delivers exceptional belt life
- Meets RMA standards for Oil and Heat Resistance and Static Conductivity
- High tensile strength allows for greater power transmission applications
- Resists abrasion and wear
Common Applications
- Industrial fans
- Woodworking equipment
- Heavy duty compressors
- Construction machinery
- Manufacturing drives
- Other pumps, presses and heavy duty drives
Specifications

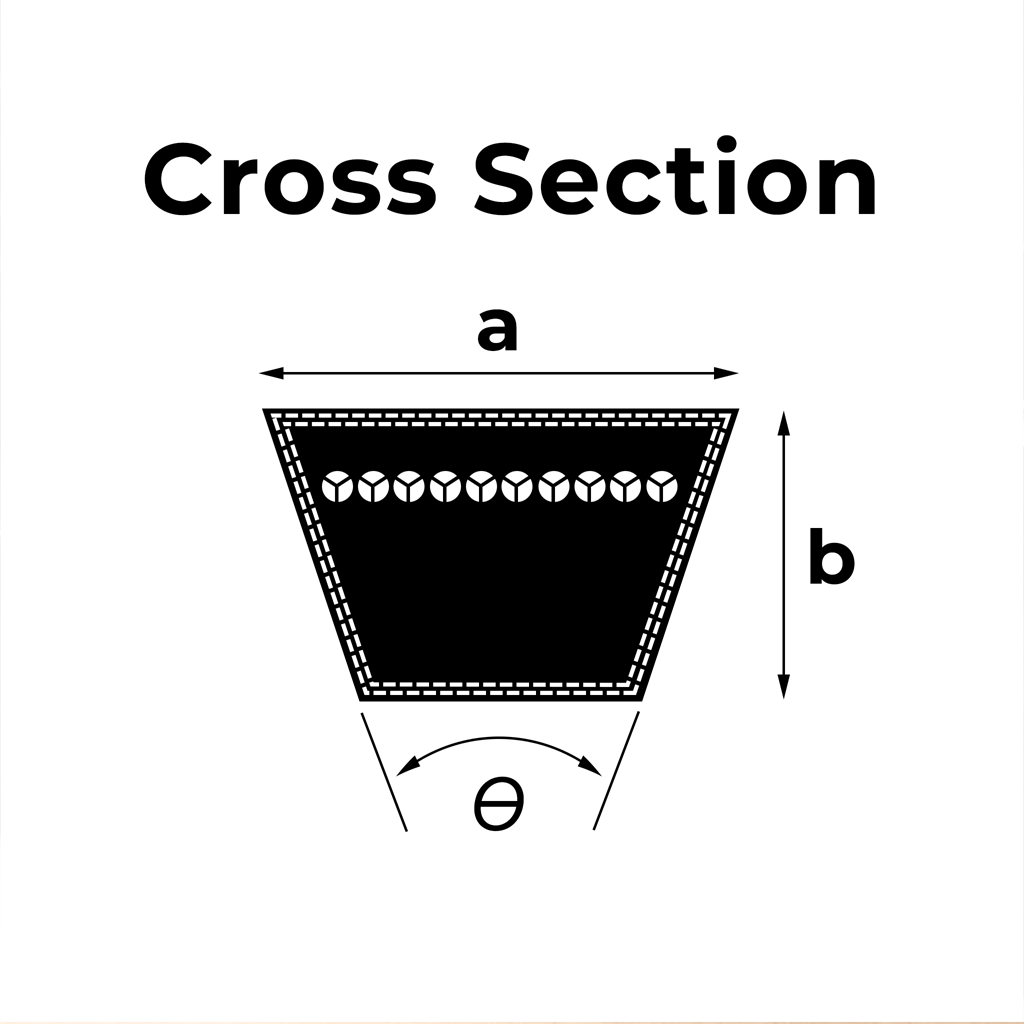

| Outside Length | 118 (in) |
| Width (a) |
3/8 (in); 9.5 (mm) |
| Height (b) | 5/16 (in); 8 (mm) |
| Angle (ϴ) | 38 (°) |
| Approx. Weight | 0.48 (lbs); 215 (g) |
All dimensions are nominal
