BB90 Double Angle V-Belt

SWR Industries Ltd.

  • $40.26 CAD
    Unit price per
  • Save $12.73 CAD
Shipping calculated at checkout.


[In stock and available for immediate pickup or delivery across Canada/USA
International orders, please contact us.

Brand: THREE FIVE
Model: BB90
Made in Thailand

Information

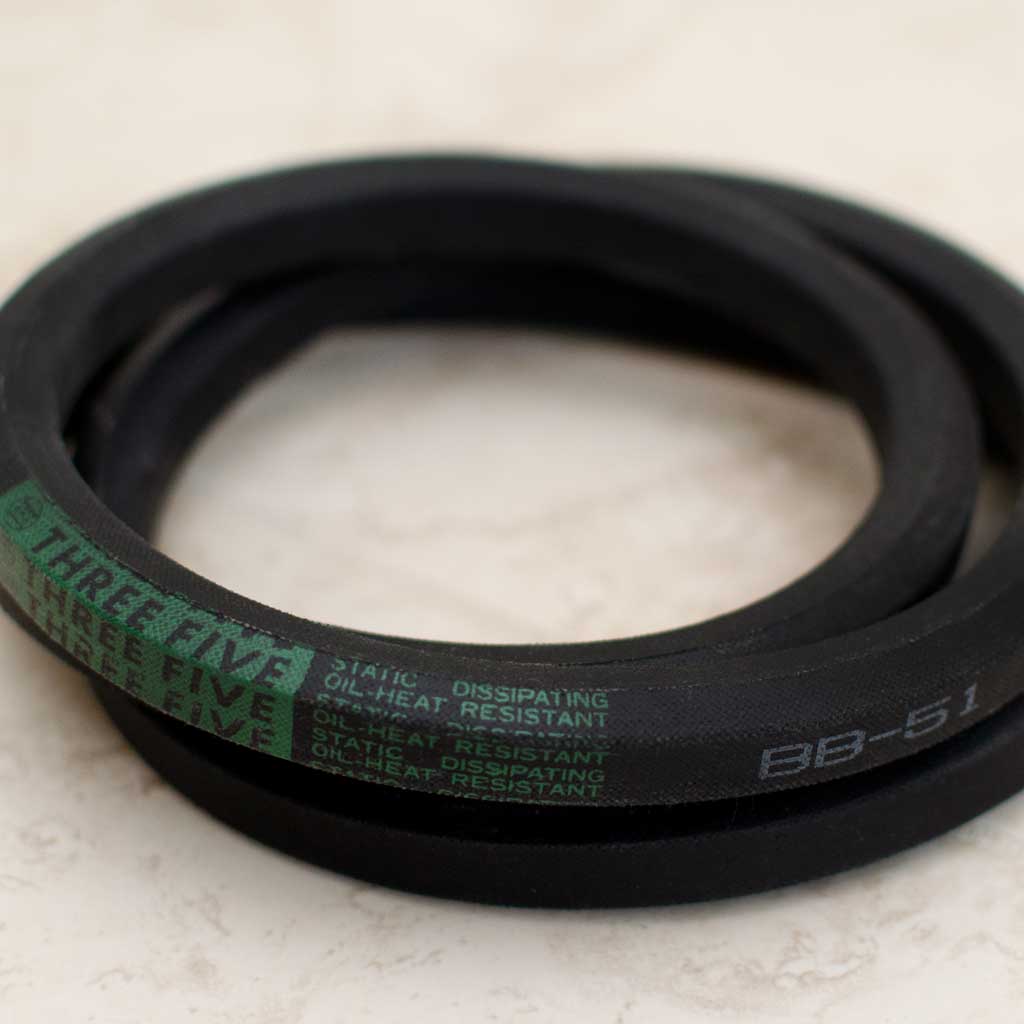

THREE FIVE Double Angle V-belts are made with premium materials and are essentially multiple standard belts.  Either side of the belt can be used as a driving surface.  They are used on equipment where a number of shafts need to be driven in opposite directions at the same time by a single belt.

Manufactured with a durable layer of continuous polyester cable , these belts withstand higher dynamic loads and resist flexing from shocks and fatigue.  Contact us directly for any unlisted sizes.

Key Features

  • Heavy duty rubber base with pre-stretched polyester tension cord delivers exceptional belt life
  • Meets RMA standards for Oil and Heat Resistance and Static Conductivity
  • High tensile strength allows for greater power transmission applications
  • Resists abrasion and wear

Common Applications

  • Cotton gins
  • Rock crushers
  • Grain combines
  • Manufacturing and industrial drives
  • Construction machinery
  • Material sorting equipment
  • Other pumps, presses and heavy duty drives

 Specifications

Outside Length 94.6 (in)
Pitch Length 92.9 (in)

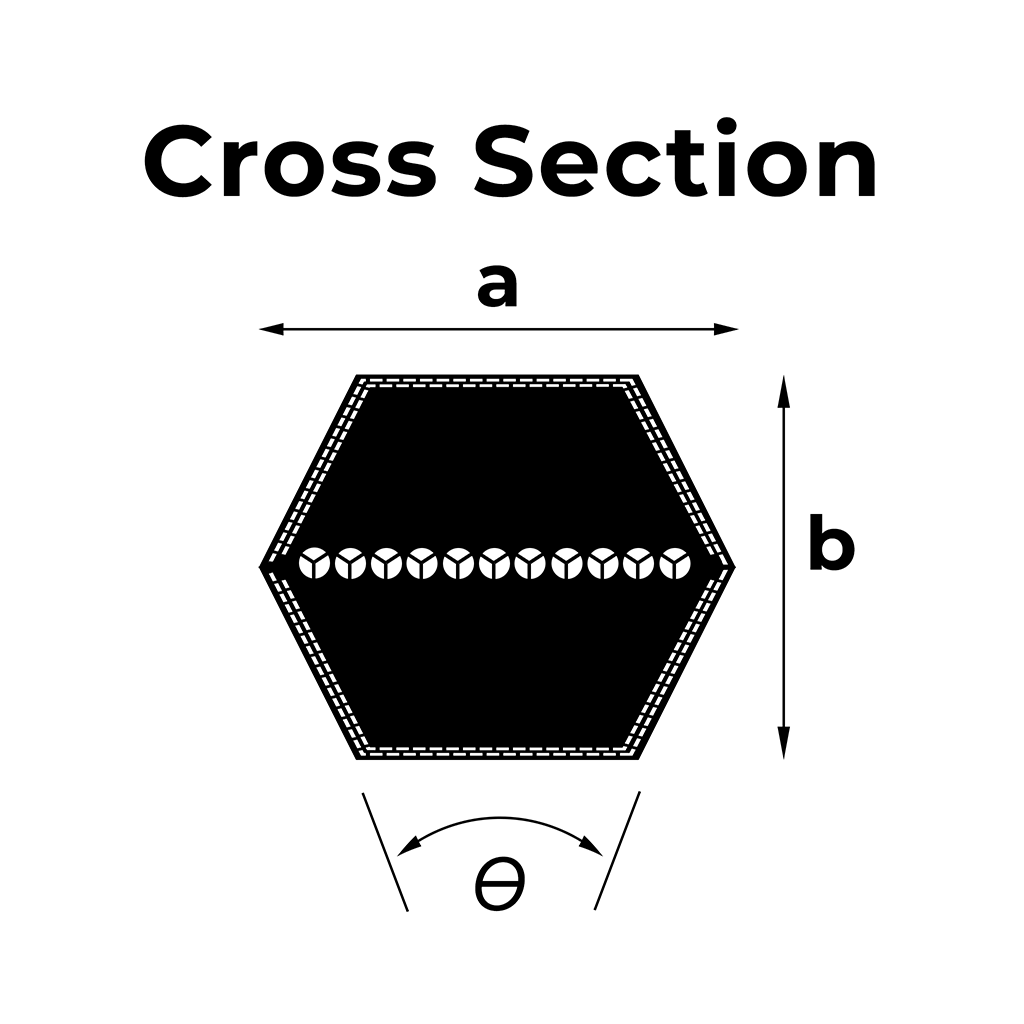

Width (a)
21/32 (in); 16.7 (mm)
Height (b) 17/32 (in); 13.5 (mm)
Angle (ϴ) 40 (°)
Approx. Weight 1.35 (lbs); 611 (g)

 All dimensions are nominal
